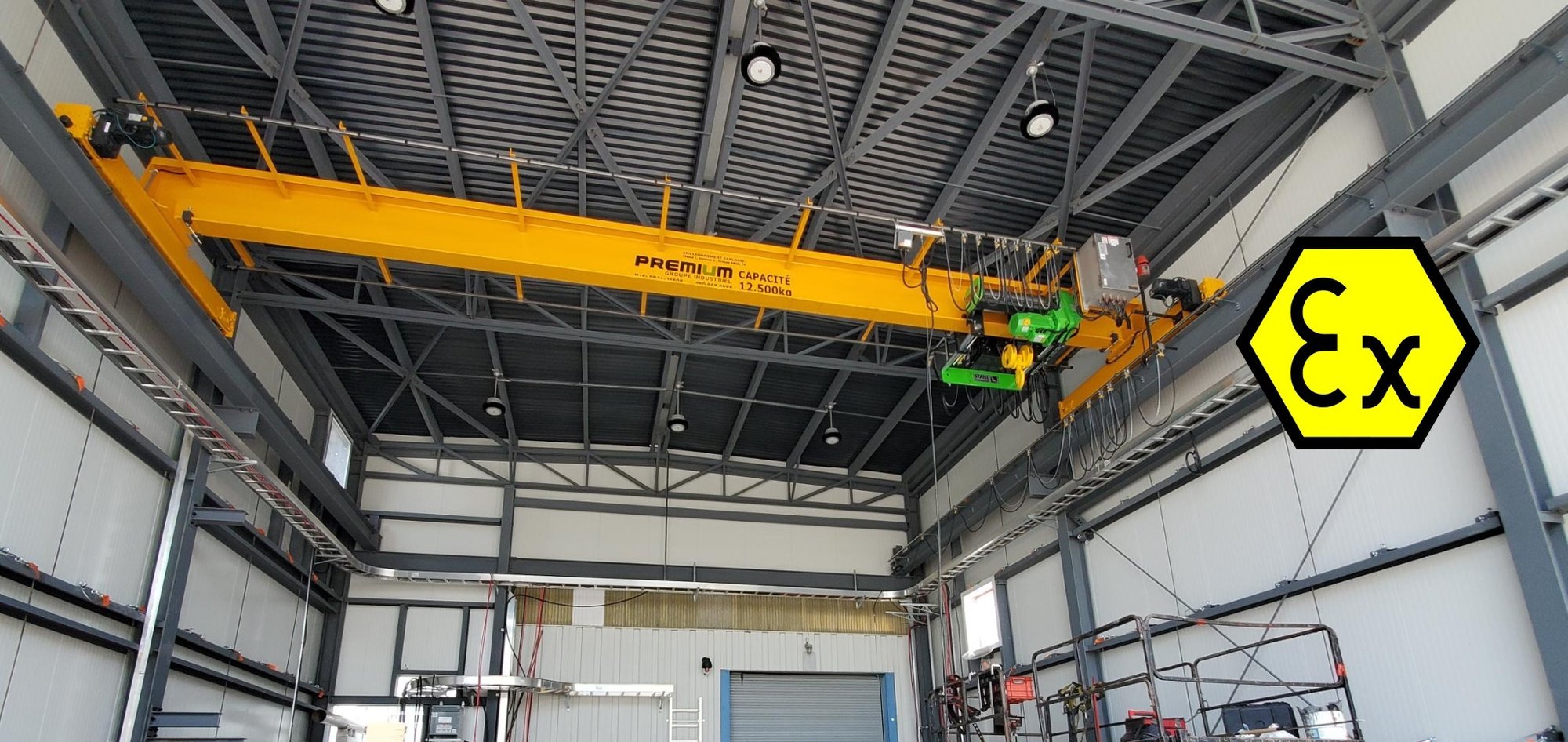

Explosion proof overhead cranes



Some work environments contain flammable gases, such as gasoline vapors or natural gas. Others, like paint booths, present combustible dust or unstable particles suspended in the air. The presence of an ignition source, heat, spark, friction, or electrostatic discharge, can be enough to trigger an explosion.

A simple classification error can turn equipment that appears safe on paper into a major risk in the field.

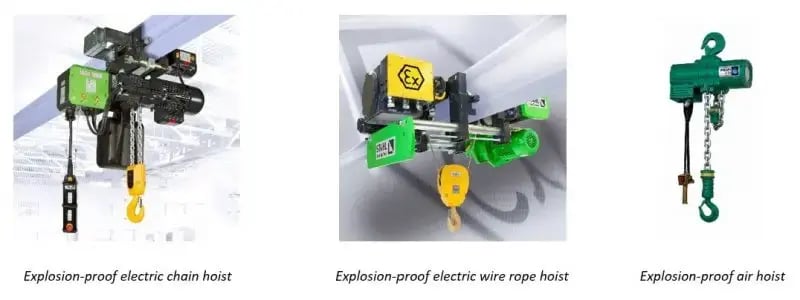

This is why we offer explosion-proof overhead cranes and lifting devices, designed and certified according to the strictest standards, including the Canadian CSA standard and ATEX/IECEx directives for explosive environments.
3x-explosion-proof-800x300
×
image (42) (2)
Frame 767
marquage-nord-americain-800x510-3

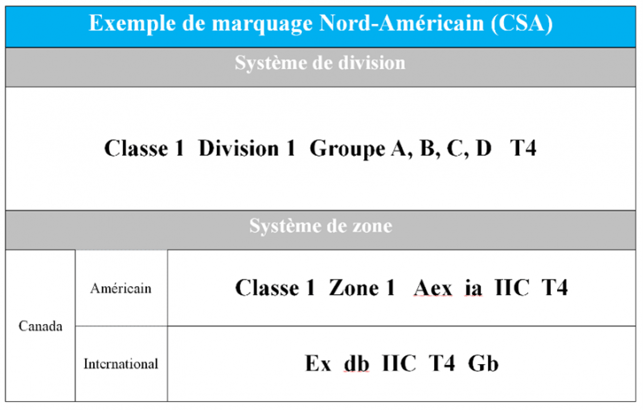

Classification of hazardous locations

Hazardous locations are classified according to the type of danger involved: Class I locations (Zone 0,1,2) involve flammable gases or vapors in sufficient quantities to form explosive atmospheres, while Class II locations (Zone 20,21,22) are characterized by the presence of combustible or electrically conductive dusts. The classification by an expert specifies the location of the equipment in the room, the type of substance and the environment, as well as the maximum surface temperature of the equipment, in order to prevent any risk of self-ignition.
Canada/US: Class I,II division 1,2
Canada/other countries: Zone 0,1,2 or 20,21,22

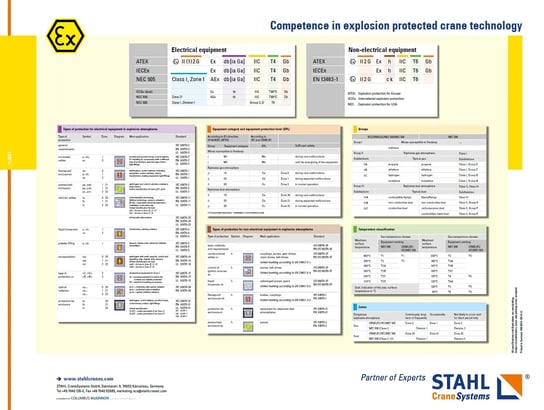

View the full classification table
image (3)

Lorem ipsum dolor sit amet, consectetur adipiscing elit.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Etiam eu turpis molestie, dictum est a, mattis tellus. Sed dignissim, metus nec fringilla accumsan, risus sem sollicitudin lacus, ut interdum tellus elit sed risus. Maecenas eget condimentum velit, sit amet feugiat lectus.

1.

Self-supporting structure on concrete slab

Who?
Vector (11)
Description
Fixed to a concrete slab 1 with chemical adhesive and anchoring rods. This concept is also known as a self-supporting bridge crane.
Who?
Vector (11)
Description
Fixed to a concrete slab 1 with chemical adhesive and anchoring rods. This concept is also known as a self-supporting bridge crane.
Who?
Vector (11)
Description
Fixed to a concrete slab 1 with chemical adhesive and anchoring rods. This concept is also known as a self-supporting bridge crane.
Who?
Vector (11)
Description
Fixed to a concrete slab 1 with chemical adhesive and anchoring rods. This concept is also known as a self-supporting bridge crane.
TYPE OF CRANE: Filed
Read more
Explosion-proof Zone

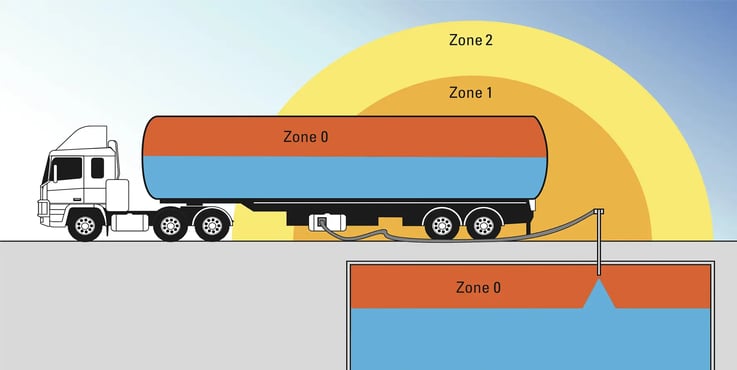

Should we classify according to the division system or the zone system?

In principle, zone and division methods of site distribution offer equivalent levels of safety. However, the Canadian Electrical Code (CE) gives preference to zoning. As indicated in Section 18, new installations in Class I hazardous locations will henceforth be classified according to the zoning system.
For existing installations, the decision to reclassify them under the zoning system is left to the owner. Lifting equipment approved for Class 1 or Class 1, Division 1 is accepted in Zones 1 and 2, while Class 1, Division 2 lifting equipment is only accepted in Zone 2. Refer to articles 18-100 and 18-150 and the table in Appendix J, section J1.2.
image (3)

Lorem ipsum dolor sit amet, consectetur adipiscing elit.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Etiam eu turpis molestie, dictum est a, mattis tellus. Sed dignissim, metus nec fringilla accumsan, risus sem sollicitudin lacus, ut interdum tellus elit sed risus. Maecenas eget condimentum velit, sit amet feugiat lectus.

1.

Self-supporting structure on concrete slab

Who?
Vector (11)
Description
Fixed to a concrete slab 1 with chemical adhesive and anchoring rods. This concept is also known as a self-supporting bridge crane.
Who?
Vector (11)
Description
Fixed to a concrete slab 1 with chemical adhesive and anchoring rods. This concept is also known as a self-supporting bridge crane.
Who?
Vector (11)
Description
Fixed to a concrete slab 1 with chemical adhesive and anchoring rods. This concept is also known as a self-supporting bridge crane.
Who?
Vector (11)
Description
Fixed to a concrete slab 1 with chemical adhesive and anchoring rods. This concept is also known as a self-supporting bridge crane.
TYPE OF CRANE: Filed
Read more
classification's determination

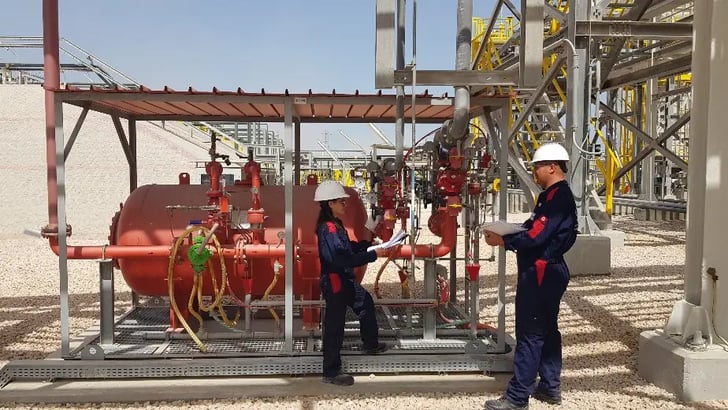

Who can determine classification?

The classification of hazardous locations must be carried out by a qualified professional, such as an engineer or a chemist, since it relies on specialized standards and regulations. This analysis is based in particular on the Canadian Electrical Code (CEC), the Quebec Construction Code – Chapter V Electricity, the RSST for risk‑prevention requirements, and the IEC 60079‑10‑1 standard for the methodology used to classify hazardous zones. A well‑documented assessment then enables the crane manufacturer to design equipment that is compliant and properly classified.

LEARN MORE IN THE RBQ REPORT
image (3)

Lorem ipsum dolor sit amet, consectetur adipiscing elit.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Etiam eu turpis molestie, dictum est a, mattis tellus. Sed dignissim, metus nec fringilla accumsan, risus sem sollicitudin lacus, ut interdum tellus elit sed risus. Maecenas eget condimentum velit, sit amet feugiat lectus.

1.

Self-supporting structure on concrete slab

Who?
Vector (11)
Description
Fixed to a concrete slab 1 with chemical adhesive and anchoring rods. This concept is also known as a self-supporting bridge crane.
Who?
Vector (11)
Description
Fixed to a concrete slab 1 with chemical adhesive and anchoring rods. This concept is also known as a self-supporting bridge crane.
Who?
Vector (11)
Description
Fixed to a concrete slab 1 with chemical adhesive and anchoring rods. This concept is also known as a self-supporting bridge crane.
Who?
Vector (11)
Description
Fixed to a concrete slab 1 with chemical adhesive and anchoring rods. This concept is also known as a self-supporting bridge crane.
TYPE OF CRANE: Filed
Read more

Is certification mandatory for equipment and components that are not electrical?

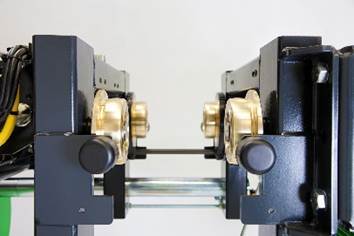

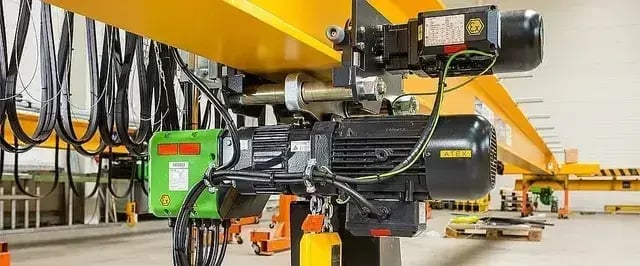

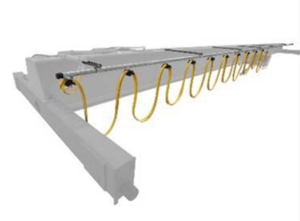

In some cases, equipment or components may appear safe because they are not electrified. Take, for example, an air-powered hoist. At first glance, this equipment presents no spark hazard. However, the friction of certain materials or impacts could generate sparks. In Canada, there are no recognized national standards, or certification programs, for evaluating non-electrical equipment used in flammable environments, although some industries or jurisdictions may impose their own requirements. That said, the expert involved in the case may recommend specific spark-resistant non-electrical components, such as brass wheels, a bronze-coated hook or a stainless steel electrification system.
csm_kz_st_ex_009_webgr_bbd2f6a1d2-640w-640w

How much does an explosion-proof overhead crane cost?

The cost of an explosion-proof overhead crane is typically 3 to 4 times higher than that of a standard crane. This difference is due to the use of specialized components designed to withstand explosion risks, and the need to comply with strict manufacturing standards. Each system requires precise wiring, in-shop testing, and a mandatory CSA SPE-1000 inspection in Canada after electrical assembly.

Prices for standard overhead cranes
image (3)

Lorem ipsum dolor sit amet, consectetur adipiscing elit.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Etiam eu turpis molestie, dictum est a, mattis tellus. Sed dignissim, metus nec fringilla accumsan, risus sem sollicitudin lacus, ut interdum tellus elit sed risus. Maecenas eget condimentum velit, sit amet feugiat lectus.

1.

Self-supporting structure on concrete slab

Who?
Vector (11)
Description
Fixed to a concrete slab 1 with chemical adhesive and anchoring rods. This concept is also known as a self-supporting bridge crane.
Who?
Vector (11)
Description
Fixed to a concrete slab 1 with chemical adhesive and anchoring rods. This concept is also known as a self-supporting bridge crane.
Who?
Vector (11)
Description
Fixed to a concrete slab 1 with chemical adhesive and anchoring rods. This concept is also known as a self-supporting bridge crane.
Who?
Vector (11)
Description
Fixed to a concrete slab 1 with chemical adhesive and anchoring rods. This concept is also known as a self-supporting bridge crane.
TYPE OF CRANE: Filed
Read more

Where to Start?

Choosing an explosion-proof overhead crane can feel overwhelming, especially when strict safety and hazardous zone standards must be met. Here are the recommended steps to launch your project in a structured and efficient way:



  1. 1. Consult a process specialist
  2. Before selecting your equipment, it's essential to determine the classification of your hazardous area (class, division, group, auto-ignition temperature). This step directly influences the type of explosion-proof crane required.
  3.
  4. 2. Assess your lifting requirements
  5. Make sure to gather the following operational data:

  1. Number of lifts per hour

  2. Required lifting height

  3. Maximum load weight

  4. Lifting and travel speeds (if specific speeds are required)

  5. Ambient temperature or other environmental conditions

  1. 3. Communicate with the crane manufacturer
  2. Before reaching out to a manufacturer, prepare the following details:
  1. Your environment’s classification (class, division, group, temperature)
  2. Your operational cycles (frequency and intensity)
  3. Any integration constraints: available clearance, physical space, and safety requirements
You now have a clear overview of the key elements needed to plan a safe and compliant explosion-proof crane project.

Our team can help validate your needs, ensure your project meets applicable standards, and recommend the equipment best suited to your environment.

Click “Contact a Specialist” to get started.
