Machinex: How to save time with tandem lifting

March 3, 2020

3:28

Are you having trouble meeting your delivery time goals with your customers?

Does your current lifting solution make you waste time?

Machinex was facing this kind of challenge. In this article, you'll discover how Machinex eliminated its dependence on rental cranes, reduced production times and increased efficiency — all thanks to a tandem lifting configuration.

This case study presents :

Machinex's initial challenge
The lifting solution chosen by Machinex
The positive results of this solution for Machinex

Who is Machinex?

Machinex is a world leader in the manufacture and installation of material recovery systems. The company is renowned for its high-quality recycling equipment. Among these, the MACH Trommel is a key component of modern recycling plants. In 2019, Machinex inaugurated a new plant in Plessisville.

The Machinex challenge: save time and eliminate lifting equipment rental

Machinex's initial challenge was to speed up the loading of rotary screens and presses for delivery to the installation site, without being dependent on equipment rental.

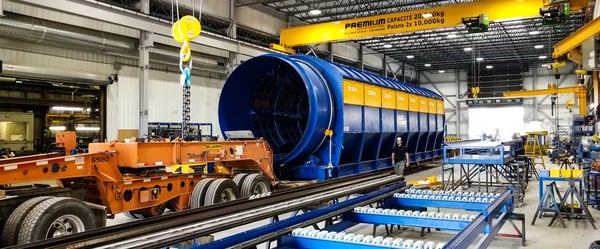

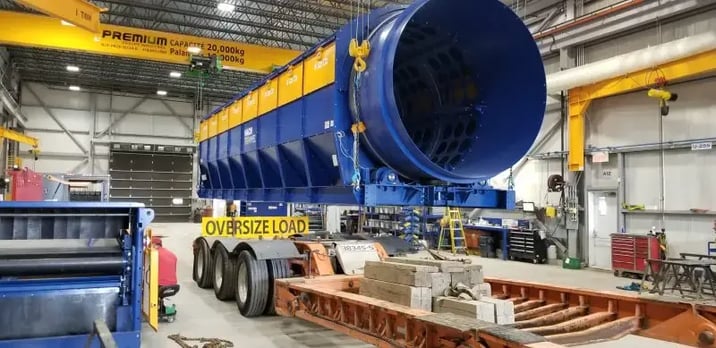

These parts are heavy and imposing, and moving them requires great stability, especially when loading these components onto trailers. For example, MACH drums can reach a weight of 30,000 kg and a length of 15,3 m.

For this reason, it was necessary to hire cranes to carry out this operation. But as demand grew, what was Machinex going to do to increase throughput?

Chosen solution: high-performance tandem lifting

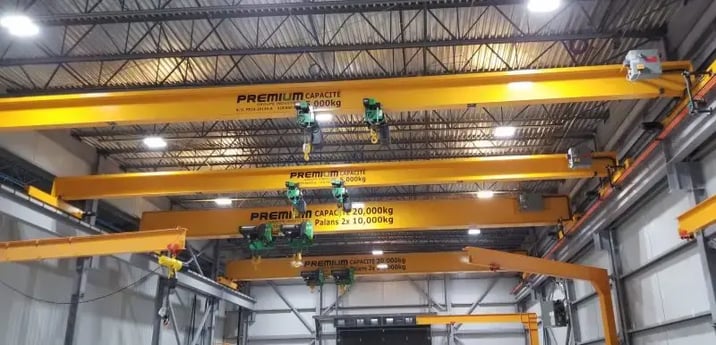

To meet the challenge, Machinex now uses two 20,000 kg overhead cranes, each equipped with 2 wire rope hoists with an individual capacity of 10,000 kg. The four hoists can be used individually or in tandem mode.

The wireless control system allows a single operator to control both overhead cranes, facilitating lifting operations and ensuring smooth travel, despite the oversized equipment.

This solution ensures perfect equipment synchronization and enhanced safety.

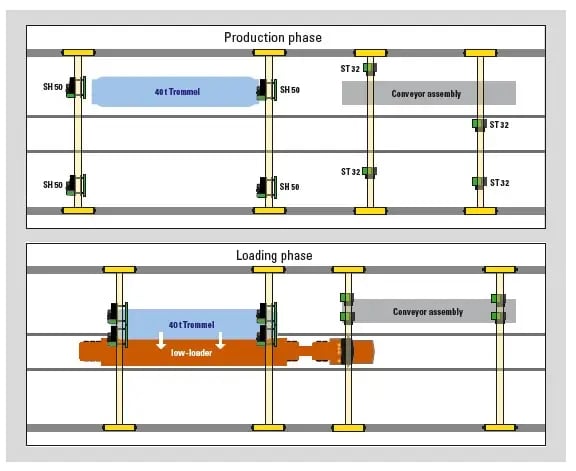

MachinexProduction-phase

What positive results has this solution brought for Machinex?

The results of the new installation

Thanks to this new equipment, here are the results obtained by Machinex :

Time saved during expedition
No longer dependent on equipment rental

Watch the video in which Jean-Michel Paré explains the results obtained :

‘’ Previously, we would bring in a traditional crane to lift the press and place it on the transport. Now, we save a lot of time because we simply lift it with the two overhead cranes, place it on the transport and it goes straight to our customer's facility. ‘’
– Jean-Michel Paré
Chief Operation Officer

Tandem lifting : a solution for you?

If your current operations are slowing you down and impacting your customers' satisfaction with your delivery times, it can be a headache. If you want to improve your process, tandem lifting may be the solution for you.

To find out if tandem lifting is right for you, we recommend reading the article Need an overhead crane: Where to start? It contains the essential steps for evaluating your project.

And if you're looking for personalized support, Premium Industrial Group can help you determine the best configuration for your lifting equipment to boost productivity. Don't hesitate to contact us by clicking on "contact a specialist" at the bottom of this page.
